High conductivity anode carbon block

Short Description:

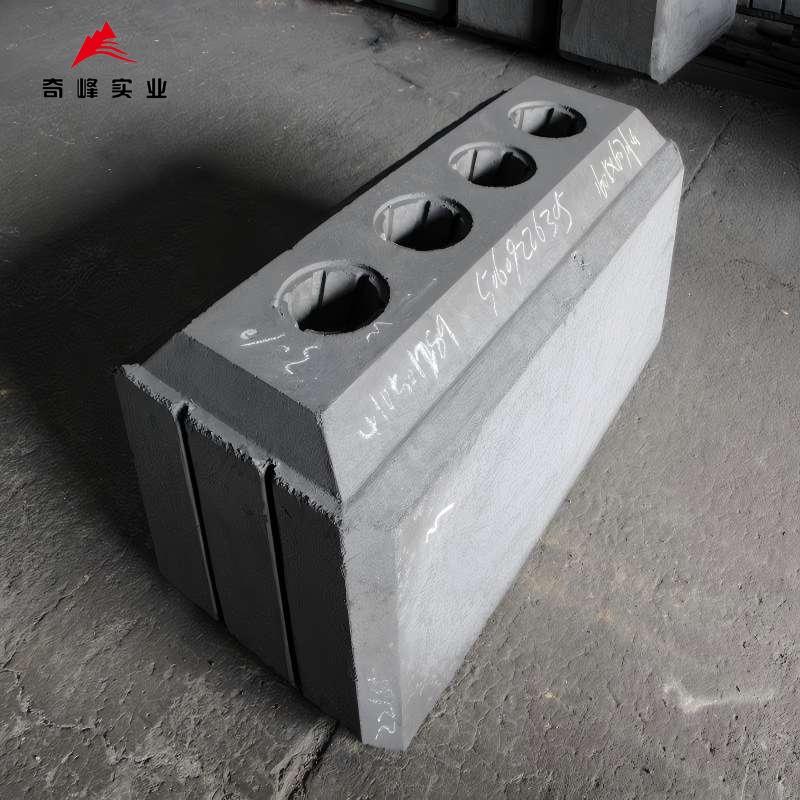

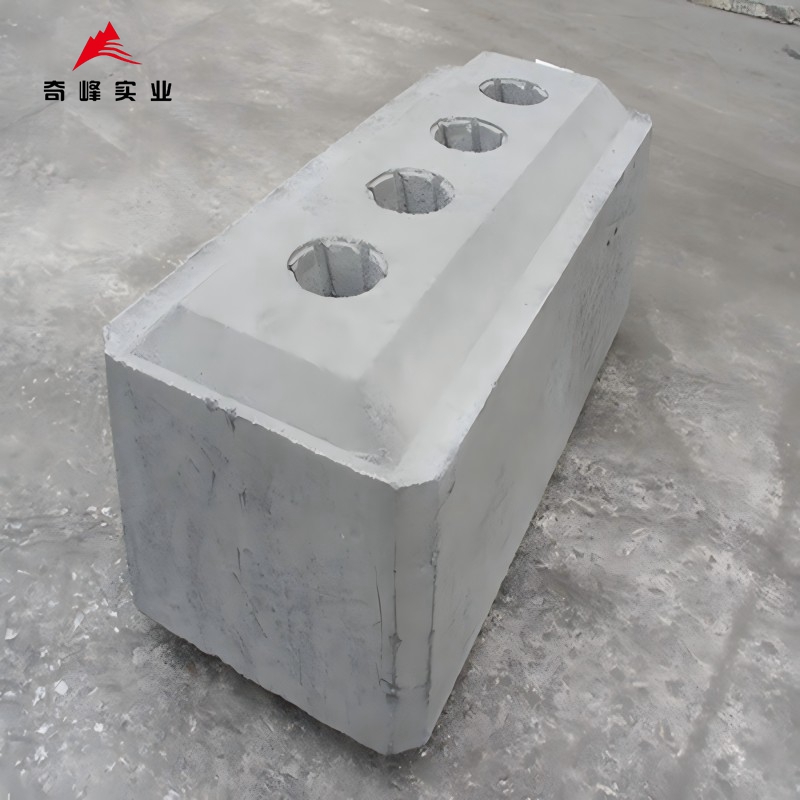

The anode carbon block refers to the carbon block, produced with petroleum coke and pitch coke as aggregate and coal tar pitch as a binder, which is used as the anode material for the pre-baked aluminum electrolytic cell. This kind of carbon block has been roasted and it has a stable geometry. Therefore, it is also called the pre-baked anode carbon block, and it is also called the carbon anode for aluminum electrolysis.

Contact person: Mike@ykcpc.com

Send email to us Download as PDF

Product Detail

FAQ

Product Tags

Anode Carbon Block Overview

Technical Data Sheet

Item	Unit	Data
Apparent density	g/cm³	≥1.53
Real density	g/cm³	≥2.04
Compressive strength	MPa	≥32.0
Residual anode rate	%	≥80.0
Electrical resistivity	μΩ·m	≤55
Thermal expansion coefficient	10/K	≤5.0
Ash content	%	≤0.5
Size	1000×710×560mm, 1000×720×540mm, 1120×700×560mm1450×700×600mm,1450×660×570mm,1450×660×540mm,1500×660×660mm, 1500×660×570mm, 1600×700×590mm,1350×810×635

Note: The Technical data are based on the EN/ISO/DIN standards. They serve to give general information, they are liable to natural deviations, depending on production and shape. They are not to be cited and guaranteed properties or guaranteed values.

Specifications can be customized according to customer requirements.
